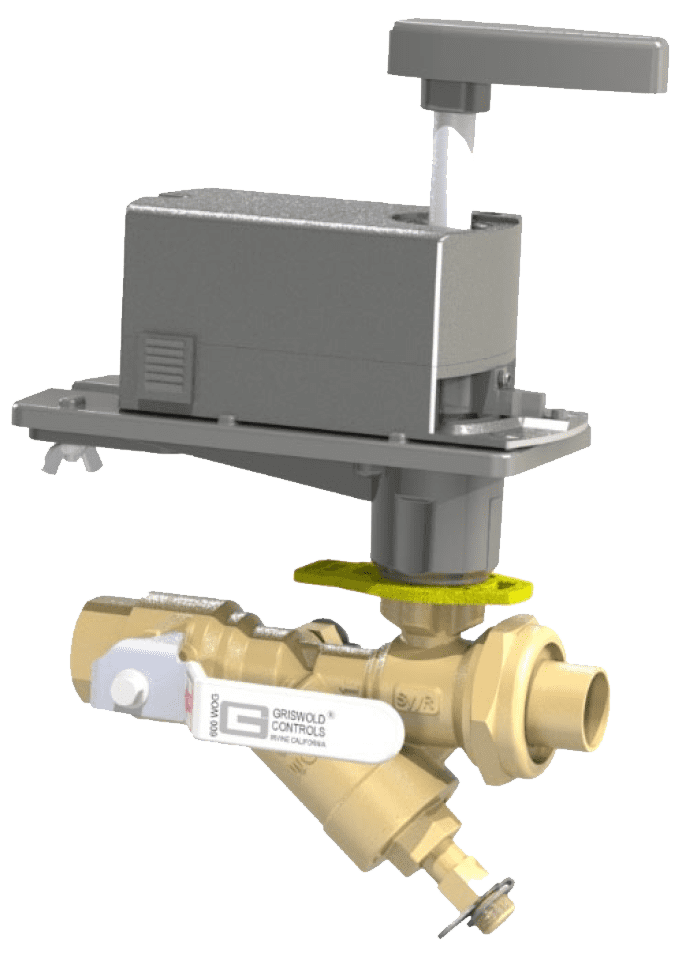

Combination Actuated Ball Valve and Flow Limiting Valve
Automizer® and Balance Zone Automatic Flow Limiting & Temperature Control
Sizes: 1/2″ – 2″
Multiple Features in One Valve – Most coils have a temperature control valve and a balancing or flow limiting valve. Two valves means two manufacturers and two distributors. Griswold Controls provides a single source for both valves, for less hassles and less headaches. And for an added feature, the Automizer® has an integrated isolation ball valve so it is the entire return side of the coil in one valve.
Griswold Controls has combined the equal percentage control of the Optimizer® insert with the precision of the Griswold Stainless Steel Flow Limiting Cartridge in the Automizer valve. The Griswold Controls Flow Cartridge limits flow from exceeding coil’s specification, while the Optimizer® creates a smooth, responsive flow curve when the valve is actuated.
Automizer® and Balance Zone valves are ideal for schools, office buildings, VAV boxes, fan coil units, heat pump installations, and terminal boxes.
Click Here: Automizer® Case Study- Chicago’s Hotel Inter-Continental’s North Tower
Recommended Applications:
- Where actuated valves and balancing valves are used to control the flow
- For VAV boxes, fan coil units and terminal boxes
- Where space is tight
Automizer® Specification Sheets & Product Information
| Form# | Description |
|---|---|
| F-4372 (PDF) | Automizer® Color Brochure |
| F-4334 (PDF) | Actuated Control Valve Sizing Guide |
| F-4381 (DOC) | Automizer® Written Specs |
| F-5391 (PDF) | 1/2″-2″ Automizer® |
| F-5050X (PDF) | 1/2″ – 1-1/2″ CPP-2A ~ Automizer® Coil Piping Package |
| F-4498 (PDF) | 1/2″ SpaceSaver – 2″ XL Automizer® Typical Installation |
| F-5487 (PDF) | Choosing the Right Valve for the Job: PIC-V® or Automizer® |

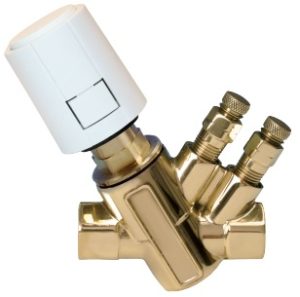

Balance Zone
| Form# | Description |
|---|---|
| F-5558 (PDF) | Balance Zone Color Brochure |
| F-4305 (PDF) | Balance Zone Specification Sheet |
| 1D95011US (PDF) | Balance Zone Installation Operation and Maintenance Manual |
Installation, Operation, and Maintenance Materials
| Form# | Description |
|---|---|
| F-709ZF (PDF) | Installation, Operation and Maintenance |
| F-4332 (PDF) | Installation & Operations Instructions For MVP Valve |
| Pinnacle (PDF) | Pinnacle Installation Operation and Maintenance Manual |
| F-5580 (PDF) | PIM-A Mini Installation Operation and Maintenance Manual |
| F-5592 (PDF) | EPIC System Installation, Operation and Maintenance |
| F-5595 (PDF) | BTU Meter Installation, Operation and Maintenance |
