Coil Piping Packages/Hose Kits

Standard Coil Piping Packages & Coil Hookups

Griswold Coil Piping Packages are pre-assembled piping systems that save time and reduce cost. We offer fully assembled coil hook ups that can be readily connected to your system with as little as 4 connections. No more field assembled components, we do it all for you. Griswold Controls offers over 900 standard configurations that can be shipped in as little as 48 hours from order receipt from your Griswold Controls Representative. Griswold Coil Piping Packages (CPP’s) may include Flow Control Valves, Isolators, ball valves, unions, Y-Strainers, temperature control valves, stainless steel hoses, insulated hoses, air vents, pressure/temperature test valves, and drain valves.

A few good reasons to choose Griswold Controls Coil Piping Packages:

  • Over 900 Standard Configurations to Choose From
  • 1/2″ – 3″ Sizes in Sweat, FNPT and MNPT Connections
  • Single Source Supplier For ALL Components (Flow Control, Piping Components, ATC)
  • Packaged and Tagged For Easy Job Distribution (Shrink Wrapped or Tie Wrapped)

Recommended Applications:

  • Where labor costs need to be decreased
  • Where number of leak points in the system needs to be reduced
  • Where hassle-free product distribution at the job site is required
  • Where purchase order process needs to be simplified
 Standard Coil Piping Packages & Coil Hookups


Download CPP Sales Brochure

Pre-Assembled Coil Hook-Ups – CPP-IRIS

Isolator R Isolator S 1, 2 or 3 or 6 Way Packages

Sizes 1/2″- 3″

Pre-Assembled Coil Hook-Ups – CPP-IRIS
Description:

Supply-Side: Isolator S with pressure/temperature test valve and drain valve. Includes integral strainer and ball valve.

Return-Side: Isolator R with 2 pressure/temperature test valve and manual air vent. Choice of end piece connections.(2 way & 3 way packages include Isolator Union with manual air vent).

CPP-IRIS Specification Sheets & Product Information
Form#Description
F-5424 (PDF)1/2″ – 2″ CPP- 1IRIS Package (FNPT, SWT or MNPT)
F-5419 (PDF)2″- 3″ CPP- 1IRIS Package (FNPT only)
F-5426 (PDF)1/2″ – 2″ CPP- 2IRIS Package (FNPT or SWT)
F-5420 (PDF)2″- 3″ CPP-2IRIS and CPP-2IRISU Package (FNPT only)
F-5428 (PDF)1/2″ – 2″ CPP-3IRIS Package (FNPT or SWT)
F-5422 (PDF)2″ – 3″ CPP-3IRIS and CPP-3IRISU Package (FNPT only)
F-5429 (PDF)1/2″ – 2″ CPP- 2IRISU Package (FNPT or SWT)
F-5423 (PDF)1/2″ – 2″ CPP- 3IRISU Package (FNPT or SWT)
F-5613 (PDF)1/2” – 1” CPP-6IRIS Package (FNPT or SWT)
F-5622 (PDF)1/2” – 1” CPP-6IRIS Package Sales Brochure

Pre-Assembled Coil Hook-ups / Coil Piping Packages

Isolator Y Packages

Sizes 1/2″- 2″

Isolator Y Packages
Description:

Supply-Side: Isolator Y with pressure/temperature test valves, drain valve and choice of union end piece.

Return-Side: Isolator B with air vent and pressure/temperature test valve. Choice of end piece connections. (2 way & 3 way packages include Isolator Union with manual air vent).

CPPIY Specification Sheets & Product Information
Form#Description
F-5433 (PDF)1/2″ – 2″ CPP-1IY Package (FNPT, SWT or MNPT)
F-5435 (PDF)1/2″ – 2″ CPP-2IY Package (FNPT or SWT)
F-5437 (PDF)1/2″ – 2″ CPP-3IY Package (FNPT or SWT)
F-5438 (PDF)1/2″ – 2″ CPP-2IYU Package (FNPT or SWT)
F-5477 (PDF)1/2″ – 2″ CPP-3IYU Package (FNPT or SWT)

Pre-Assembled Coil Hook-ups / Coil Piping Packages

QuickSet®, QuickDisc® and SpeedSet Packages 1, 2 or 3 Way Packages

Sizes 1/2″- 2″

QuickSet® and QuickDisc® Packages 1, 2 or 3 Way Packages
Description:

Supply-Side: Isolator S with pressure/temperature test valve and drain valve. Includes integral strainer and ball valve.

Return-Side: QuickSet®, QuickDisc®, or SpeedSet Manual Balancing Valve with 2 pressure/temperature test valves, memory stop, optimizer and venturi. Choice of end piece connections (2 way & 3 way packages include Isolator Union with manual air vent).

QuickSet®, QuickDisc®, or SpeedSet Specification Sheets & Product Information
Form#Description
F-5412 (PDF)1/2″ – 2″ CPP-1Q Package
F-5413 (PDF)1/2″ – 2″ CPP-2Q Package
F-5415 (PDF)1/2″ – 2″ CPP-3Q Package
F-5414 (PDF)1/2″ – 2″ CPP-2QU Package
F-5416 (PDF)1/2″ – 2″ CPP-3QU Package

Pre-Assembled Coil Hook-ups / Coil Piping Packages

QuickSet® 2 or 3 Way Packages

Sizes 2-1/2″- 12″

Description:

Supply-Side: Y-Strainer with pressure/temperature test valve and drain valve. Includes integral strainer and butterfly valve. (Optional accessory ports and control valve available)

Return-Side: QuickSet® Manual Balancing Valve with 2 pressure/temperature test valves, butterfly valve, and venturi. Flanged connection. (Optional accessory ports and  carbon steel spool w/1-3 ports* for accessories available, flanged tee with optional butterfly on bypass available on 3 way packages)

*Carbon steel spool available for up to 8″ size only.

QuickSet®, QuickDisc®, or SpeedSet Specification Sheets & Product Information
Form#Description
F-5645 (PDF)2-1/2″ – 12″ CPP-PQF-2 Way Package
F-5646 (PDF)2-1/2″ – 12″ CPP-PQF-3 Way Package

Pre-Assembled Coil Packages – Automizer® and PIC-V®

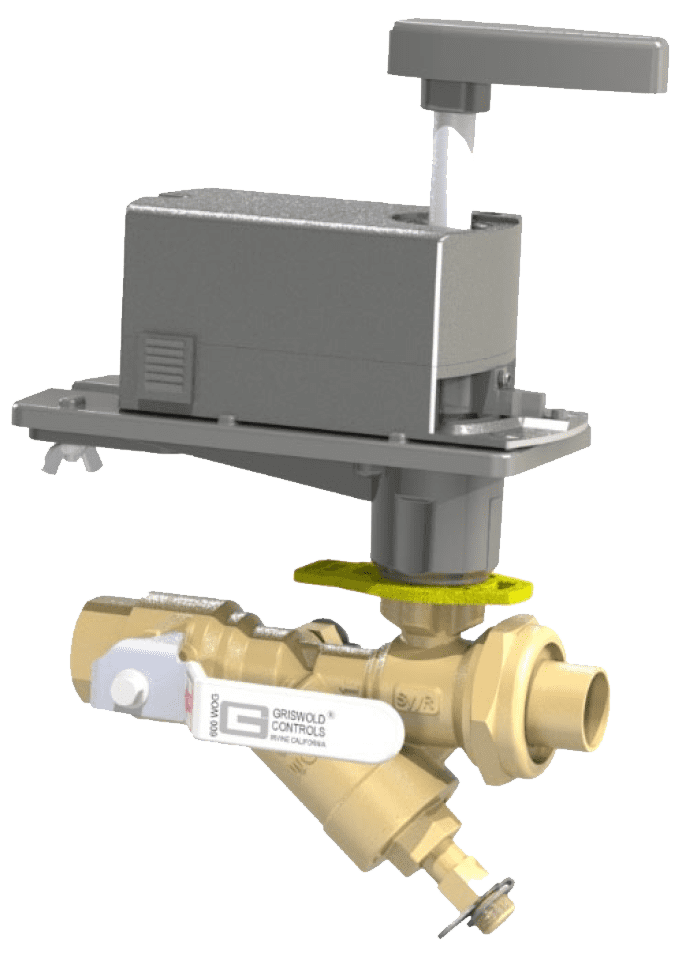

Automizer Packages CPP-2A

PIC-V Packages CPP-2PIC-V

Description:

Supply-Side: Isolator S with pressure/temperature test valve and drain valve. Includes integral strainer and ball valve.

Return-Side: Automizer or PIC-V. Assembly includes universal actuator mounting plate, for your choice of actuator, supplied by Griswold or supplied by others. Choice of end piece connections.

Automizer® and PIC-V® Packages Specification Sheets & Product Information
Form#Description
F-4463 (PDF)1/2″ – 2″ CPP-2A
F-5538 (PDF)1/2″ – 2″ CPP-2PIC-V
F-5391 (PDF)1/2″ – 2″ Automizer
F-5508 (PDF)1/2″-3″ PIC-V
F-5387 (PDF)1/2″ – 3″ Isolator S
F-2979 (PDF)Coil Piping Packages Performance

Pre-Assembled Flushing Bypass & Plumbing Kits

Flushing Bypass Kits BYP & IB IS Plumbing Kits CPP-2BIS
Sizes 1/2″ – 2″
Description:

The flushing bypass kit protects Griswold’s best-selling Coil Piping Packages (CPP) – ensuring protection for Griswold
CPPs and coils and control valves supplied by others.
Flushing Bypass & Plumbing Kits Specification Sheets & Product Information
Form#Description
F-5648 (PDF)Flushing Bypass Kits Brochure
F-5647-Bypass (PDF)1/2″ - 2″ Flushing Bypass Kits
F-5585A-CPP-2BIS (PDF)1/2″ - 2″ Plumbing Kits CPP-2BIS

Pre-Assembled Coil Hook-Ups with Hoses

Automatic Balancing, Manual Balancing & Deluxe Ball Valve Kits

Size 1/2″ – 2″

Pre-Assembled Coil Hook-Ups with Hoses
Griswold Controls Hose Kits are pre-assembled flow control packages with flame retardant stainless steel hoses. Most Hose Kits are available in sizes from 1/2″ to 2″, with hose lengths from 12 to 36 inches. Kits contain flow control valve, hoses, and isolation ball valve. Hose Kits 14 and 4 have y-strainers included in with other components.

Pre-Assembled Hose Kits
Form#Description
F-5473 (PDF)Hose Kit # 14, 17, 18 20, 21 (Sizes 1/2″ – 2″)
